Caratteristiche

Specificazioni

Feature: TRUCK CRANE

Showroom Location: Egypt, Turkey, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Thailand, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine

Condition: New

Rated Loading Capacity: 50 ton

Rated Lifting Moment: 2009kN.m

Max. Lifting Height: 50M

Span: 10.85m

Warranty: 1 Year

Hydraulic Cylinder Brand: famous brand

Hydraulic Pump Brand: famous brand

Hydraulic Valve Brand: famous brand

Engine Brand: famous brand

UNIQUE SELLING POINT: High operating efficiency

Machinery Test Report: Provided

Video outgoing-inspection: Provided

Marketing Type: New Product 2020

Warranty of core components: 1 Year

Core Components: Engine, PLC

Weight (KG): 50000 kg

Overall length: 13750mm

Overall width: 2750mm

Overall height: 3800mm

Total weight in travel: 50000kg

Swing speed: 0-2.2 r/min

Engine rated power: 250KW/2100rpm

Max. grade-ability: 40%

Max. travel speed: 85km/h

Min. turning diameter: 12m

Min. ground clearance: 295mm

Informazioni di base

Termini di pagamento e spedizione

Packaging Details: Nude package, RoRo vessel

Supply Ability: 1000 Unit/Units per Month

Descrizione di prodotto

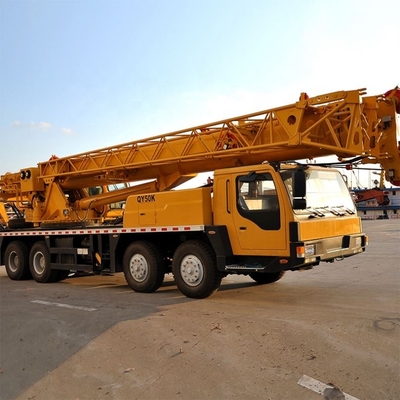

Official Certificated High performance 50 ton mobile truck crane QY50KA

Company Profile

Product Overview

QY50KA Truck Crane

1.Leading lifting performance and traveling performance
2.Mature and reliable double pump confluence technology, highest hoisting, elevating and telescoping efficiency in the industry
3.Improved reliability of radiation and electric systems, safer lifting and driving operation
4.Air-assisting shift gears bring more comfortable operation
5.New upgraded outline and humanized design, more comfortable driving operation

Product Paramenters

Description			Unit	Parameter value
Overall length			mm	13930


Overall width			mm	2780
Overall Height			mm	3630
Axle base	1st ,2nd axle	mm	1470
			2nd ,3rd axle		4300
			3rd ,4th axle		1350
Wheel Base			mm	2304+2075
Front overhang/rear overhang			mm	2389/2064or 2376/2064
Front extension/rear extension			mm	2131/226 or 2144/226
Total vehicle mass in travel configuration			kg	42200
Axle load	Front axle	kg	16200
Axle load		kg	Rear axle		26000
Engine Model				WD615.338
Engine rated power			kw/(r/min)	276/2200
Engine rated torque			N.m/(r/min)	1500/1300-1600
Max. travel speed			km/h	85
Min. steady travel speed			km/h	2~3
Min. turning diameter			m	24
Min. ground clearance			mm	327
Max. grade ability			%	42
Approach angle			°	19
Departure angle			°	15
Braking distance (at 30 km/h, full load )			m	≤10
Oil consumption per 100km			L	40
Exterior noise level during acceleration traveling			dB (A)	≤88
Noise level at seated position			dB (A)	≤90

Product Configuration
